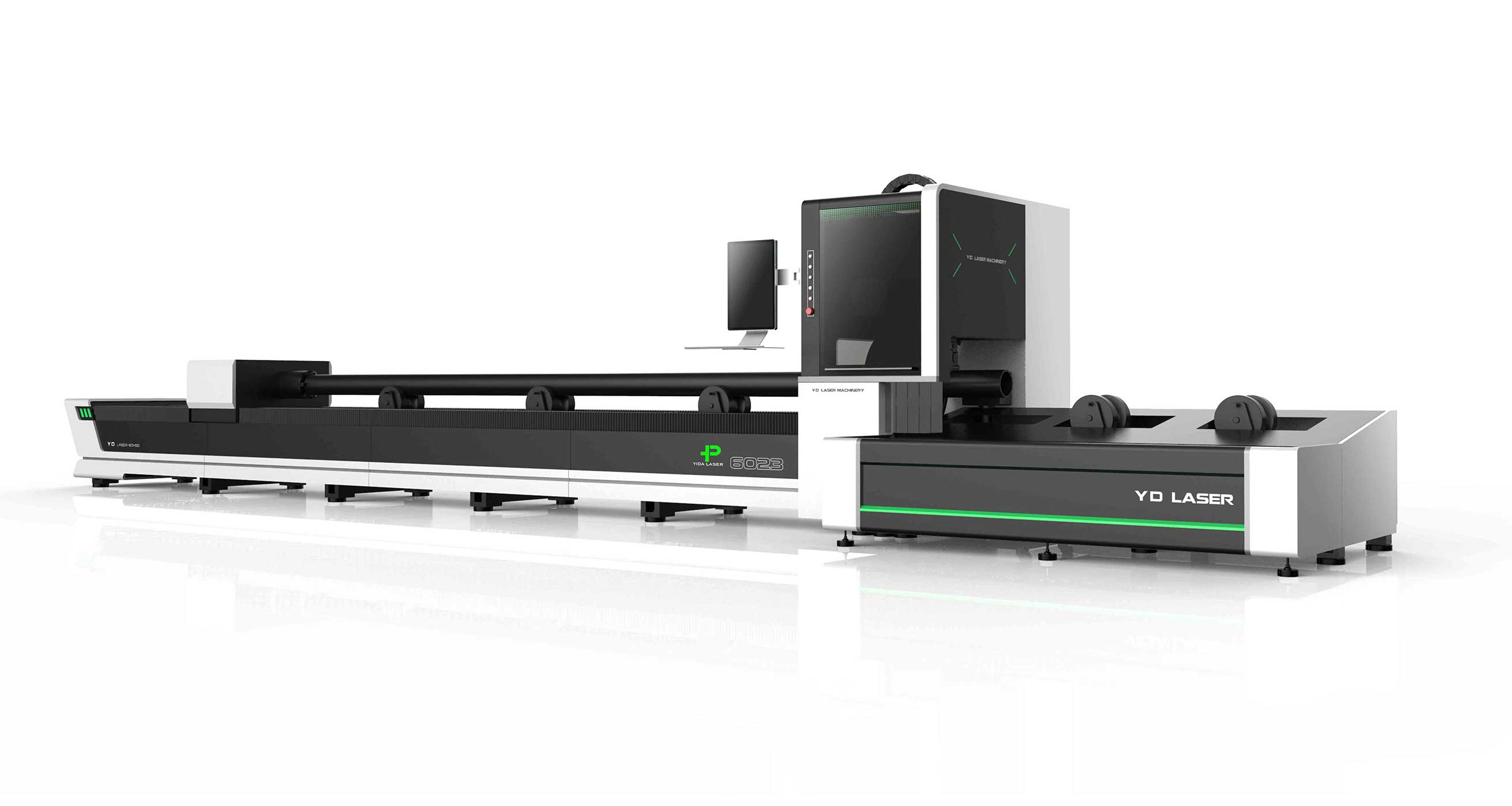

Laser Square Tube Cutting Machine From Alibaba For Sale
YD Laser Square Tube Cutting Machine From Alibaba For Sale
QSeries> Features
Q Cutting system for high precision tube cutting.
Q Specialized auxiliary support structure (Optional with Automation system)
Q Pneumatic Chuck with automatic self centering,improve process efficiency.
Q Welded body frame, high precision and stability.
YD Laser Square Tube Cutting Machine From Alibaba For Sale
Laser Square Tube Cutting Machine,Laser Tube Cutting Machine Alibaba,Laser Tube Cutting Machine For Sale
Product Model Q-Tube Cutting /Fiber laser pipe cutting machine
QSeries> Features
Q Cutting system for high precision tube cutting.
Q Specialized auxiliary support structure (Optional with Automation system)
Q Pneumatic Chuck with automatic self centering,improve process efficiency.
Q Welded body frame, high precision and stability.
Product Specification:
| Model | 9223Q | 6536Q | 6523Q | 6516Q |
| Tube Cross Section Shape | Round Tube, Square Tube, Rectangular Tube, Oval Tube, Ob-round Tube, L-Angle Steel, C-Channel Steel and other type of pipes | |||
| Tube Size Range | Round Tube:Φ10-Φ230mm Square Tube:□10-□160mm Oval Tube:170mm≥ Side Length ≥20mm, Outer Diameter≤230mm | Round Tube:Φ10-Φ360mm Square Tube:□10-□254mm Oval Tube:300mm≥ Side Length ≥20mm, Outer Diameter≤360mm | Round Tube Φ10-Φ230mm Square Tube □10-□160mm Oval Tube：170mm≥ Side Length≥20mm Outer Diameter≤230mm | Round Tube Φ10-Φ160mm Square Tube □10-□110mm Oval Tube:110mm≥ Side Length≥20mm Outer Diameter≤160 mm |
| Laser Power | 1000/1500/2000/3000/4000/6000W | |||
| Maximum Tube Processing Length | 9200mm | 6500mm | ||
| Position Accuracy | 0.05mm | |||
| Repeatability Accuracy | 0.03mm | |||
Product Description:
The laser pipe cutting machine is widely used: laser cutting can be used for carbon steel cutting, stainless steel cutting, alloy steel cutting, aluminum and alloy material cutting, etc
Perforation, complex contour and long pipe machining can be realized through simple operation.
High cutting efficiency and mass production can be realized.
Application:
Alternate platform laser reducing device can reduce carbon metallic, stainless steel, copper, aluminum and other pipes and profiles, such as: the tube, pipe, oval pipe, rectangular pipe, h-beam, i-beam, angle, channel, and many others.
the device is extensively used in numerous type of pipes profile processing subject, shipbuilding enterprise, community structure, steel, marine engineering, oil pipelines and different industries.
Certificates:
Contact Us:
Jinan Yida Machine Tool Co., Ltd
Address: Room J1 304, high tech Wanda office building, Jinan area, Shandong pilot Free Trade Zone, China
Tel: +8653182899697
Email: yd@yd-laser.com
| Model | 9223Q | 6536Q | 6523Q | 6516Q |
| Tube Cross Section Shape | Round Tube, Square Tube, Rectangular Tube, Oval Tube, Ob-round Tube, L-Angle Steel, C-Channel Steel and other type of pipes | |||
| Tube Size Range | Round Tube:Φ10-Φ230mm Square Tube:□10-□160mm Oval Tube:170mm≥ Side Length ≥20mm, Outer Diameter≤230mm | Round Tube:Φ10-Φ360mm Square Tube:□10-□254mm Oval Tube:300mm≥ Side Length ≥20mm, Outer Diameter≤360mm | Round Tube Φ10-Φ230mm Square Tube □10-□160mm Oval Tube：170mm≥ Side Length≥20mm Outer Diameter≤230mm | Round Tube Φ10-Φ160mm Square Tube □10-□110mm Oval Tube:110mm≥ Side Length≥20mm Outer Diameter≤160 mm |
| Laser Power | 1000/1500/2000/3000/4000/6000W | |||
| Maximum Tube Processing Length | 9200mm | 6500mm | ||
| Position Accuracy | 0.05mm | |||
| Repeatability Accuracy | 0.03mm | |||
