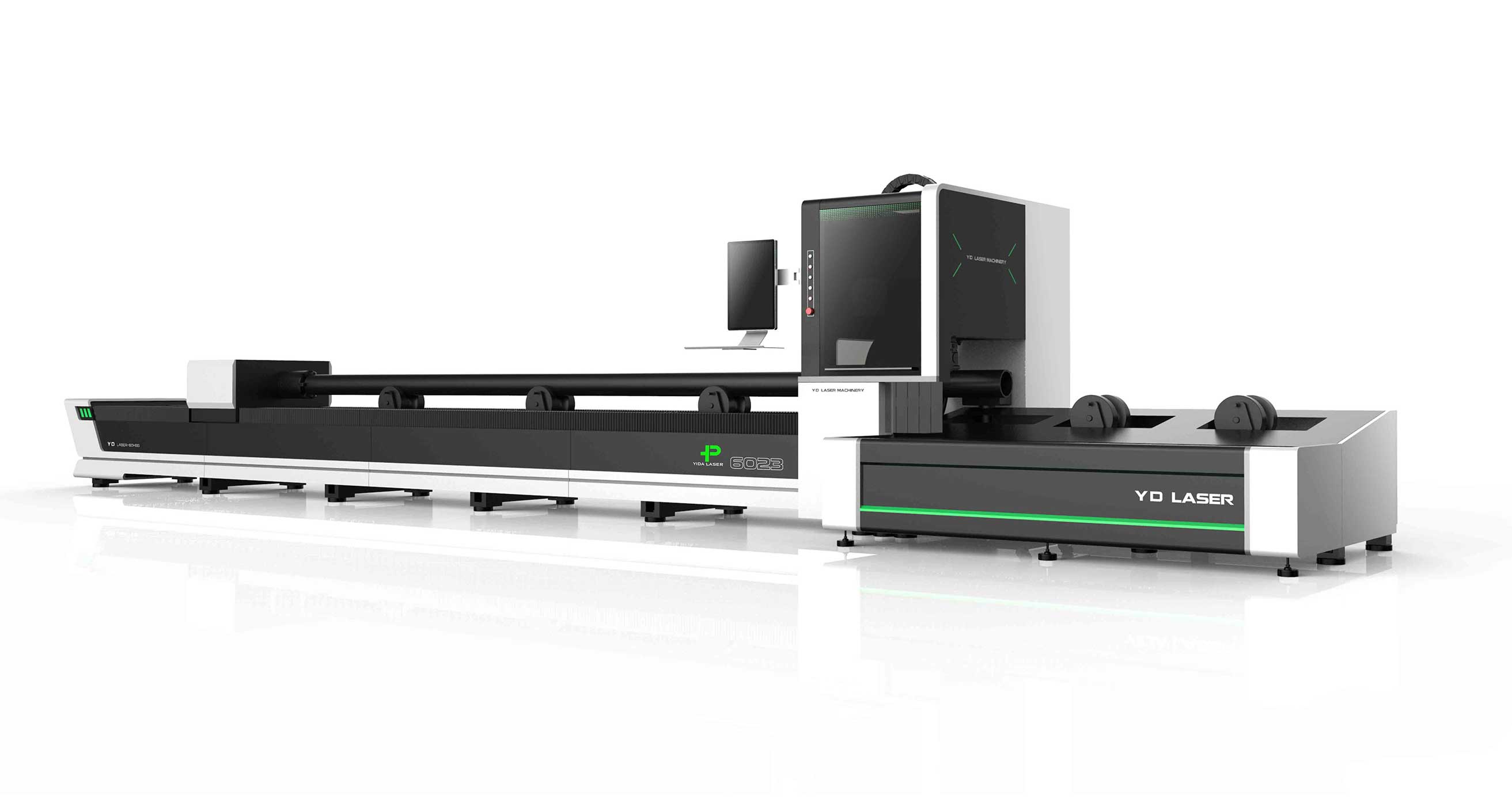

Laser Pipe Cutting Machine
With the continuous development and maturity of laser technology, especially the rapid development of NC laser cutting machine equipment in recent years, it is widely used in sheet metal, steel structure, auto parts, packaging and other industries. CNC laser cutting machine has obvious advantages: fast cutting speed, good quality and high precision; The cutting surface is smooth and does not damage the workpiece
The laser pipe cutting machine is widely used: laser cutting can be used for carbon steel cutting, stainless steel cutting, alloy steel cutting, aluminum and alloy material cutting, etc
Perforation, complex contour and long pipe machining can be realized through simple operation.
High cutting efficiency and mass production can be realized.
Product Specification:
| Model | 9223Q | 6536Q | 6523Q | 6516Q |
| Tube Cross Section Shape | Round Tube, Square Tube, Rectangular Tube, Oval Tube, Ob-round Tube, L-Angle Steel, C-Channel Steel and other type of pipes | |||
| Tube Size Range | Round Tube:Φ10-Φ230mm Square Tube:□10-□160mm Oval Tube:170mm≥ Side Length ≥20mm, Outer Diameter≤230mm | Round Tube:Φ10-Φ360mm Square Tube:□10-□254mm Oval Tube:300mm≥ Side Length ≥20mm, Outer Diameter≤360mm | Round Tube Φ10-Φ230mm Square Tube □10-□160mm Oval Tube：170mm≥ Side Length≥20mm Outer Diameter≤230mm | Round Tube Φ10-Φ160mm Square Tube □10-□110mm Oval Tube:110mm≥ Side Length≥20mm Outer Diameter≤160 mm |
| Laser Power | 1000/1500/2000/3000/4000/6000W | |||
| Maximum Tube Processing Length | 9200mm | 6500mm | ||
| Position Accuracy | 0.05mm | |||
| Repeatability Accuracy | 0.03mm | |||
Application:
Alternate platform laser reducing device can reduce carbon metallic, stainless steel, copper, aluminum and other pipes and profiles, such as: the tube, pipe, oval pipe, rectangular pipe, h-beam, i-beam, angle, channel, and many others. the device is extensively used in numerous type of pipes profile processing subject, shipbuilding enterprise, community structure, steel, marine engineering, oil pipelines and different industries.
Certificates:
| Model | 9223Q | 6536Q | 6523Q | 6516Q |
| Tube Cross Section Shape | Round Tube, Square Tube, Rectangular Tube, Oval Tube, Ob-round Tube, L-Angle Steel, C-Channel Steel and other type of pipes | |||
| Tube Size Range | Round Tube:Φ10-Φ230mm Square Tube:□10-□160mm Oval Tube:170mm≥ Side Length ≥20mm, Outer Diameter≤230mm | Round Tube:Φ10-Φ360mm Square Tube:□10-□254mm Oval Tube:300mm≥ Side Length ≥20mm, Outer Diameter≤360mm | Round Tube Φ10-Φ230mm Square Tube □10-□160mm Oval Tube：170mm≥ Side Length≥20mm Outer Diameter≤230mm | Round Tube Φ10-Φ160mm Square Tube □10-□110mm Oval Tube:110mm≥ Side Length≥20mm Outer Diameter≤160 mm |
| Laser Power | 1000/1500/2000/3000/4000/6000W | |||
| Maximum Tube Processing Length | 9200mm | 6500mm | ||
| Position Accuracy | 0.05mm | |||
| Repeatability Accuracy | 0.03mm | |||
