square tube fiber laser cutting machine for iron pipe

YD CM round fiber laser tube cutting machine for iron pipe

In addition to effectively cutting all kinds of metal plates,  the cuttingprocess of metal pipes is also very fast.

The fixed grip design of that laser plate and tube all-in-one machine can realize the rapid adjustment of different pipes, So as to make high-precision products.


  Contact Now
Product Details

YD CM round & square tube fiber laser cutting machine for iron pipe

square tube fiber laser cutting machine,round tube fiber laser cutting machine , fiber laser cutting machine for iron pipe

square tube fiber laser cutting machine for iron pipe

Produt Introduction:

The laser plate and tube all-in-one machine tool is equipped with different professional collets and fixtures pipes of different shapes and sizes can be processed accurately.

Laser tube cutting is a production efficiency with high, powerful and flexible technology, the operator can modify the design scheme without affecting it.

The whole product production process;

The greater advantage is that end users can control the production of short version or medium version without make a large number of templates so that you can respond more quickly to customer needs, which does not require casting model.

In the metal processing industry, plate tube integrated laser cutting machine is more and more widely used.

Many metal processing manufacturers have both the needs of processing metal plates and metal pipes.

Plate tube integrated laser cutting machine is naturally the first choice, which can meet the processing needs of customers, It can also save equipment procurement cost and use one machine for multiple purposes.

The main body of the laser plate and tube all-in-one machine adopts the welding bed process, which has high mechanical strength, relatively short production cycle, easy to organize production and lower thermal sensitivity.

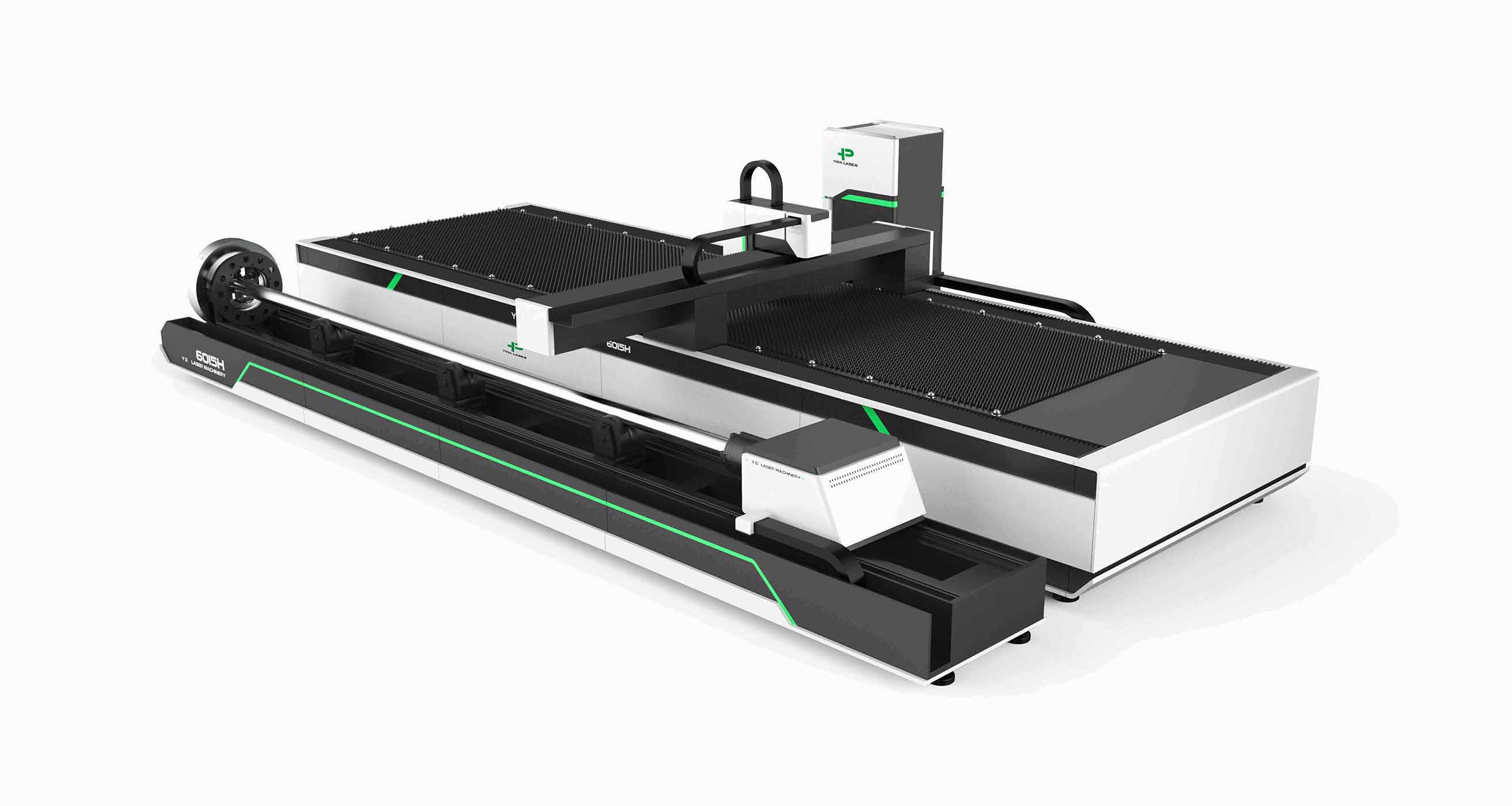

cm  (2).jpg

Advanced technology

The special reducing system database can lift out exceptional shrewd slicing for one of a kind materials, optimize the slicing surface, reduce a wider vary of materials, quicker speed, higher excellent and decrease cost, and can be utilized to the full insurance of low-power to high-power lasers.

The laser head can robotically keep away from obstacles. The laser head can elevate out excessive dynamic response, predict barriers in enhance and defend the laser head to the best extent.

Cast aluminum beam is fast. Aluminum alloy has the metallic traits of mild weight and robust rigidity, which is conducive to high-speed motion in the machining process, and excessive flexibility is conducive to high-speed slicing of a range of pix on the groundwork of excessive precision.


Product Specification:


ModelCM
Work Processing Area3050mm*1530mm4000mm*2000mm6100mm*2500mm8100mm*2500mm
Laser Sources Power1000/2000/3000/4000/6000W
Position Accuracy±0.03mm
X-Y Simultaneous Speed100m/min
  Maximum Tube
Processing Length
3000mm                6000mm              9000mm
Tube Cross Section ShapeRound Tube, Square Tube, Rectangular Tube, Oval Tube, Ob-round
Tube, L-Angle Steel, C-Channel Steel and other type of pipes
Tube Size RangeRound Tube:Φ10-Φ230mm Square Tube:□10-□160mm
Oval Tube:170mm≥ Side Length ≥20mm,
Outer Diameter≤230mm


Packing:


square tube fiber laser cutting machine for iron pipe


square tube fiber laser cutting machine for iron pipe


Our Group:

Yida Laser has been focusing on fiber laser reducing business enterprise thinking about that 2010 for reducing steel , is positioned in Zichuan, one of the pinnacle a hundred industrial areas in China.

The laser decreasing device guided by means of the usage of "excessive efficiency, excessive normal average overall performance and excessive precision" is notably used in mechanical gadget, electric powered powered gadget, marketing and advertising and advertising and marketing signs, sheet metallic production, precision parts, digital products, craft gifts, hardware manufacturing, digital elements automobile, steel, shipbuilding, machinery, aerospace, united states of america broad protection and rail transportation.

Yida laser makes a speciality of large, medium and small format laser reducing machines. Closely following the global frontier and in shut to cooperation with world-well-known laser aiding carriers which consists of the United States, Japan, Germany, Switzerland and United Kingdom, the developed laser device has excessive photoelectric conversion rate, acceptable beam high-satisfactory and secure preferred performance.

In particular, the solid-country laser reducing machine occupies a integral role in Asia in phrases of lowering thickness and decreasing speed.

Our Factory:

Laser Plate And Tube All-in-one Machine


Certificates:


Laser Plate And Tube All-in-one Machine


Contact Us:

Jinan Yida Machine Tool Co., Ltd

Address: Room J1 304, high tech Wanda office building, Jinan area, Shandong pilot Free Trade Zone, China

Tel: +8653182899697

Email: yd@yd-laser.com

Function&parameter List
●standard configuration,         ○optional configuration,
×No configuration required
C6MC4MC3M

Item

Subitem

basic parameter

Working area
6100mm*1524mm4000mm*1524mm3050mm*1530mm

Max. linkage speed
91m/min91m/min91m/min

Tube size range
Round tube    Φ20-Φ230mm
Square tube   □20 - □160mm
Rectangular tube:
170mm≥Side length≥20mm,
Circumscribed circle diameter≤230mm
Round tube    Φ20-Φ230mm
Square tube   □20 - □160mm
Rectangular tube:
170mm≥Side length≥20mm,
Circumscribed circle diameter≤230mm
Round tube    Φ20-Φ230mm
Square tube   □20 - □160mm
Rectangular tube:
170mm≥Side length≥20mm,
Circumscribed circle diameter≤230mm

Chuck maximum load
100kg  16kg/m100kg  16kg/m100kg  16kg/m

Optical system

Laser source

MAX/IPG

MAX/IPG

MAX/IPG

laser head

Ospri

Ospri

Ospri

mechanical system

Machine bed

Mortise-and-tenon type plate welded segmented bed

Mortise-and-tenon type plate welded segmented bed

Mortise-and-tenon type plate welded segmented bed

Chuck drive types

Pneumatic chuck

Pneumatic chuck

Pneumatic chuck

Max. length of tube

C-M3/6 tube maximum length is 3m or 6m

C-M3/6 tube maximum length is 3m or 6m

C-M3/6 tube maximum length is 3m or 6m

X-axis、Y-axis、Z-axisServo motor and driver

 Japan Fuji/France Schneider

 Japan Fuji/France Schneider

 Japan Fuji/France Schneider

Linear Rails

Made in Taiwan

Made in Taiwan

Made in Taiwan

Rack

Made in Taiwan

Made in Taiwan

Made in Taiwan

Electrical system


Control system
FSCUTFSCUTFSCUT

Proportional gas valve

 Japan SMC/Germany AVENTICS

 Japan SMC/Germany AVENTICS

 Japan SMC/Germany AVENTICS

O
2 Cutting gas control valve

Japan SMC

Japan SMC

Japan SMC

N
2 Cutting gas control valve

Japan SMC

Japan SMC

Japan SMC

Intelligent alarm

Acceptable file formats, sheet cutting
G文件、DXF、DWG、PLT、ENG
G file、DXF、DWG、PLT、ENG
G文件、DXF、DWG、PLT、ENG
G file、DXF、DWG、PLT、ENG
G文件、DXF、DWG、PLT、ENG
G file、DXF、DWG、PLT、ENG

Acceptable file formats, pipe/tube cutting
IGSIGSIGS
