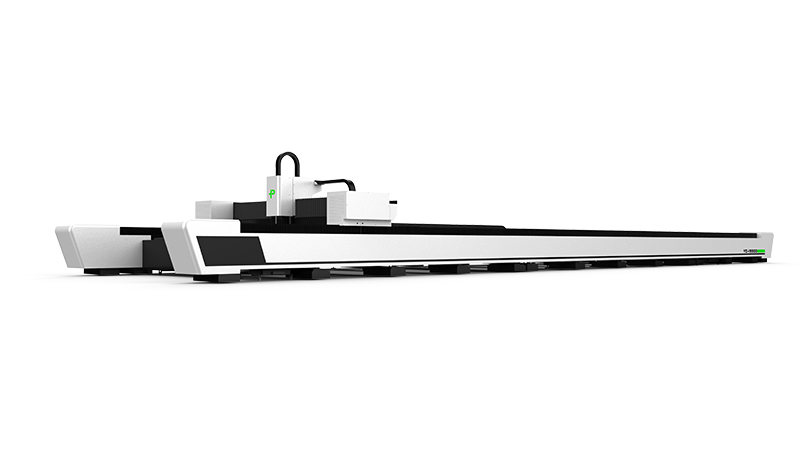

metal plate open type laser cutting machine

YD metal plate open type Laser Cutting Machine

YD Laser D Series Super Large Format laser cutting machine

DSeriesFeatures

D It supports ultra-large width and ultra-long body D It has intelligent processing, do not customization ,and can place a variety of plates.need to replace the plate midway , and also improve the work efficiency.

D It has steel structure crossbeam, with high accuracy and good stabil ity.

D It has the welding bed body, with higher strength and high stability.

Adopts excessive-power fiber laser, organized with precision linear guide rail, high-precision tools rack and extraordinary transmission mechanisms.
Mainly used for cutting and forming regular carbon steel plate, stainless-steel plate, aluminum and extraordinary metallic materials.
The gadget is designed with small volume, open workbench and structural stability. The precept frame of the device adopts the casting mattress technique, which has higher machining accuracy, higher seismic resistance and better balance.

Contact Now

Product Details

YD metal plate open type laser cutting machine

Metal Cutting Laser Machine,Laser Cutting Machines For Sale,Laser Cutting Machines South Africa,

metal plate open type laser cutting machine

Model D-extra large format laser cutting machine

Product Description

The fundamental physique of the system adopts the welding mattress way, which has excessive mechanical strength, as a substitute quick manufacturing cycle, handy to set up manufacturing and minimize thermal sensitivity .

The laser adopts global superior era The special decreasing way database can raise out extraordinarily right smart decreasing for extremely right materials, optimize the decreasing surface, reduce a miles wider kind of materials, quicker speed, higher brilliant and minimize cost, and can be carried out to the generic insurance of low-energy to immoderate-energy lasers.

The laser head can routinely keep away from boundaries. The laser head can raise out excessive dynamic response, assume boundaries in improve and shield the laser head to the best extent.

Steel beam is adopted, with excessive speed. High strength, right plasticity and toughness. Uniform material and excessive going for walks reliability.

The metallic structure has the blessings of easy manufacture, quick manufacturing cycle and right assembly. Steel beam is adopted, with excessive speed.High strength, right plasticity and toughness. Uniform material and excessive going for walks reliability.

The steel shape has the blessings of smooth manufacture, quick manufacturing cycle and right assembly.

Super Large Format Laser Cutting Machine

Product Specifications

Model	12D	16D	20D	25D	30D
Work Processing Area	12500mm*3200mm	16500mm*3200mm	20500mm*3200mm	25000mm*4500mm	30000mm*6000mm
Laser Sources Power	6000/12000/15000/20000/30000/40000W
Position Accuracy	0.1mm
Repeatability Accuracy	0.08mm
X-Y Simultaneous Speed	80m/min
X-Y Simultaneous Acceleration	1G

Packing:

Our Group:

Shandong Yida Laser Technology Co., Ltd. is a modern manufacturing enterprise specializing in the R & D and production of laser cutting machines.

The company was established in 2012 and is located in Zichuan, one of the top 100 industrial areas in China.

It is the first batch of high-tech enterprises introduced from Qilu laser Industrial Park.

The company has a 30000 square meter standardized plant. It has a professional technical team and operation system.

The team is formed by a group of experts and professors, and at the same time, maintains a good relationship with major universities and optical research institutes in order to cooperate especially in technology exchange related to Laser cutting industry.

Our Factory:

Certificates:

Super Large Format Laser Cutting Machine

Contact Us:

Jinan Yida Machine Tool Co., Ltd

Address: Room J1 304, high tech Wanda office building, Jinan area, Shandong pilot Free Trade Zone, China

Tel: +8653182899697

Email: yd@yd-laser.com

Function&parameter List			24D	20D	16D	12D
●standard configuration，
○optional configuration，
×No configuration required
Item		Subitem
Basic parameter		Working area	24500mm*3200mm	20500mm*3200mm	16500mm*3200mm	12500mm*3200mm
Basic parameter		Max.linkage speed	50m/min	50m/min	50m/min	50m/min
		Automatic adjustment of cutting gas pressure	6KW below：O2	6KW below：O2	6KW below：O2	6KW below：O2
		Automatic adjustment of cutting gas pressure	6KW and above：O2、N2、air	6KW and above：O2、N2、air	6KW and above：O2、N2、air	6KW and above：O2、N2、air
Performance		Max.acceleration	0.8G	0.8G	0.8G	0.8G
		Table load bearing	34000KG	28000KG	23000KG	17000KG
		Distance between rails	4500mm	4500mm	4500mm	4500mm
Configuration	Optical system	laser head	12KW and below：BLT/Ray Tools	12KW and below：BLT/Ray Tools	12KW and below：BLT/Ray Tools	12KW and below：BLT/Ray Tools
		laser head	12KW and above：Germany Precitec/BLT	12KW and above：Germany Precitec/BLT	12KW and above：Germany Precitec/BLT	12KW and above：Germany Precitec/BLT
		Laser source	MAX	MAX	MAX/IPG	MAX/IPG
	mechanical system	Gantry structure	High strength welding beam	High strength welding beam	High strength welding beam	High strength welding beam
		X-axis、Y-axis、Z-axis Servo motor and driver	Japan Yaskawa	Japan Yaskawa	Japan Yaskawa	Japan Yaskawa
		Linear Rails	Made in Taiwan HiWin	Made in Taiwan HiWin	Made in Taiwan HiWin	Made in Taiwan HiWin
		Rack	Made in Taiwan YYC	Made in Taiwan YYC	Made in Taiwan YYC	Made in Taiwan YYC
		Machine bed	Segmented type rail lathe bed	Segmented type rail lathe bed	Segmented type rail lathe bed	Segmented type rail lathe bed
		Enhanced-partition Dust Removal	○	○	○	○
	Electrical system	Control system	FSCUT2000S	FSCUT2000S	FSCUT2000S	FSCUT2000S
		Control system	8kw：FSCUT8000	8kw：FSCUT8000	8kw：FSCUT8000	8kw：FSCUT8000
		Electrical proportional valve	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS
		O2 Cutting gas control valve	Japan SMC	Japan SMC	Japan SMC	Japan SMC
		N2Cutting gas control valve	4KW and below：Japan SMC	4KW and below：Japan SMC	4KW and below：Japan SMC	4KW and below：Japan SMC
		N2Cutting gas control valve	6KW and above：Germany AVENTICS	6KW and above：Germany AVENTICS	6KW and above：Germany AVENTICS	6KW and above：Germany AVENTICS
