High-power Exchange Platform Laser Cutting Machine

Full Surround Design

Exchange Platform

10000 Watts Power


  Contact Now
Product Details

"Building a business with precision and winning with quality" is the concept of YD laser. With this concept, strong technical R & D strength, standardized scientific management, excellent product quality and customer-centered service, YD laser has made continuous progress and breakthroughs. The advantages of laser cutting are: small thermal deformation, high cutting precision, low noise, no pollution, easy to realize automatic self cutting. As an advanced manufacturing technology, laser cutting has the advantages of wide application range, flexible process, high machining precision, good quality, clean production process, easy automation, intelligence, improving product quality and labor productivity. The H series products of YD laser are cut alternately on two platforms to improve work efficiency, reduce cutting splash residue and ensure the safety of operators.

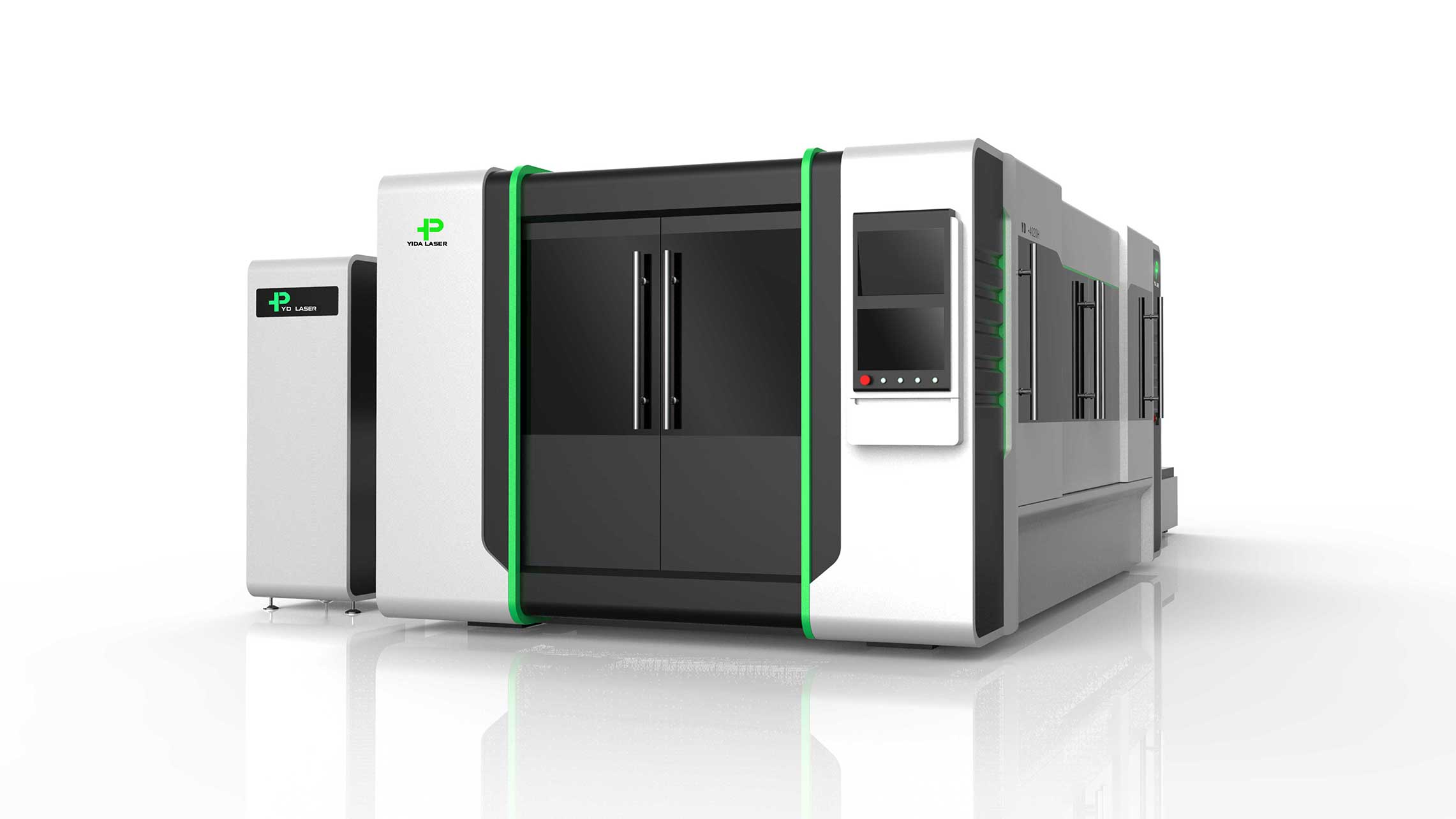

High-power Exchange Platform Laser Cutting Machine

The High-power exchange platform laser cutting  adopts gantry structure, bilateral force and tools rack, which has the traits of solid structure, suitable pressure and excessive speed. The fundamental frame of the system adopts the welding mattress process, which has excessive mechanical strength, particularly quick manufacturing cycle, clean to arrange manufacturing and decrease thermal sensitivity.High-power Exchange Platform Laser Cutting Machine

The particular slicing technique database can perform unique sensible slicing for unique materials, optimize the slicing surface, reduce a much wider variety of materials, quicker pace, higher pleasant and decrease cost, and may be carried out to the entire insurance of low-strength to excessive-strength lasers. The laser head can routinely keep away from boundaries. The laser head can perform excessive dynamic response, are expecting boundaries earlier and shield the laser head to the best extent. Cast aluminum beam is fast. Aluminum alloy has the metallic traits of mild weight and sturdy rigidity, that's conducive to excessive-pace motion withinside the machining technique, and excessive flexibility is conducive to excessive-pace slicing of numerous photographs on the premise of excessive precision.

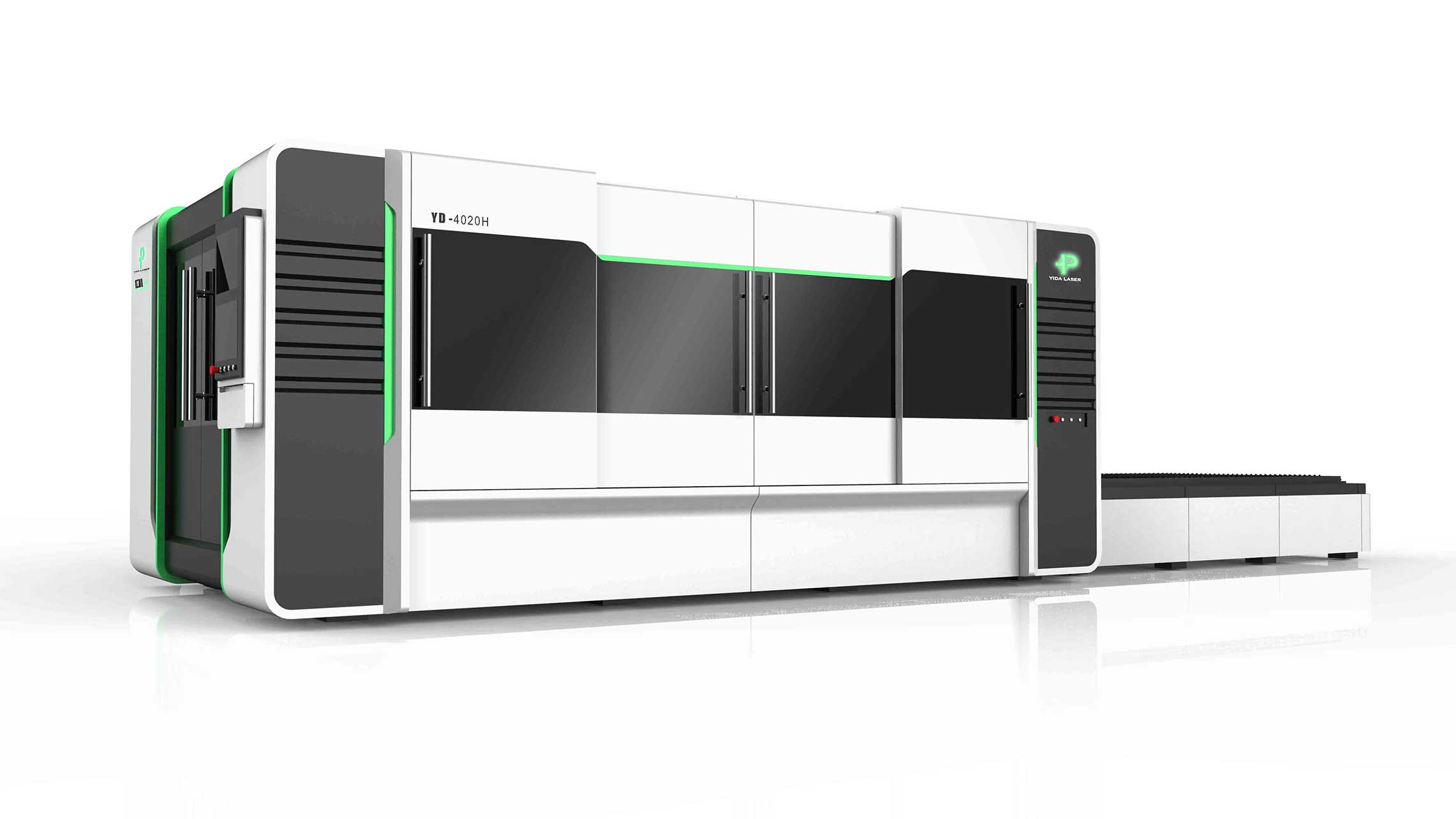

High-power Exchange Platform Laser Cutting Machine


Product Specifications:

Model3015H4020H6025H8025H12025H
Work Processing Area3050mm*1530mm4000mm*2000mm6100mm*2500mm8100mm*2500mm12000mm*2500mm
Laser Sources Power3000/6000/8000/12000W
Position Accuracy0.05mm
Repeatability Accuracy0.03mm
X-Y Simultaneous Speed110m/min
X-Y Simultaneous Acceleration1G


Packing:

High-power Exchange Platform Laser Cutting Machine


High-power Exchange Platform Laser Cutting Machine


Our Group:

Shandong Yida Laser Technology Co., Ltd. is a modern manufacturing enterprise specializing in the R & D and production of laser cutting machines. The company was established in 2012 and is located in Zichuan, one of the top 100 industrial areas in China.

It is the first batch of high-tech enterprises introduced from Qilu laser Industrial Park. The company has a 30000 square meter standardized plant. It has a professional technical team and operation system.  The team is formed by a group of experts and professors, and at the same time, maintains a good relationship with major universities and optical research institutes in order to cooperate especially in technology exchange related to Laser cutting industry.



Since its establishment, the business enterprise has targeted at the optimization and integration of technology, fine, application, marketplace and different resources. The laser slicing gadget guided by "excessive efficiency, excessive overall performance and excessive precision" is broadly used in  mechanical device, electric device, marketing and marketing signs, sheet metallic production, precision parts, virtual products, craft gifts, hardware manufacturing, digital components

automobile, steel, shipbuilding, machinery, aerospace, countrywide protection and rail transportation. Yida laser specializes in large, medium and small layout laser slicing machines. Closely following the global frontier and in near cooperation with world-well-known laser assisting providers consisting of the United States, Japan, Germany, Switzerland and United Kingdom, the evolved laser device has excessive photoelectric conversion rate, suitable beam fine and strong overall performance. In particular, the solid-kingdom laser slicing gadget occupies a main function in Asia in phrases of slicing thickness and slicing speed.


Our Factory:

High-power Exchange Platform Laser Cutting Machine


Certificates:

High-power Exchange Platform Laser Cutting Machine



Contact Us:

Jinan Yida Machine Tool Co., Ltd

Address: Room J1 304, high tech Wanda office building, Jinan area, Shandong pilot Free Trade Zone, China

Tel: +8653182899697

Email: yd@yd-laser.com

Function&parameter List8025H6025H4020H3015H
●standardconfiguration,
○optional configuration,
×No configuration required
ItemSubitem
Basic parameterWorking area8000mm*2500mm6100mm*2500mm4000mm*2000mm3050mm*1530mm
Max.linkage speed110m/min110m/min110m/min110m/min

Automatic adjustment of cutting gas pressure6KW below:O26KW below:O26KW below:O26KW below:O2
6KW and above:O2、N2、air6KW and above:O2、N2、air6KW and above:O2、N2、air6KW and above:O2、N2、air
PerformanceMax.acceleration1.2G1.2G1.2G1.2G
Table load bearing4250kg(1-4kw)4050kg(1-4kw)3050kg(1-4kw)1600kg(1-4kw)
5800kg(≥6kw)5300kg(≥6kw)4200kg(≥6kw)2500kg(≥6kw)
Overall weight≈21000kg≈15000kg≈10000kg≈6000kg
ConfigurationOptical systemlaser head12KW and below:BLT/Ray Tools12KW and below:BLT/Ray Tools12KW and below:BLT/Ray Tools12KW and below:BLT/Ray Tools
12KW and above:Germany Precitec/BLT13KW and above:Germany Precitec/BLT14KW and above:Germany Precitec/BLT15KW and above:Germany Precitec/BLT
Laser sourceMAX/IPG/Raycus/GWMAX/IPG/Raycus/GWMAX/IPG/Raycus/GWMAX/IPG/Raycus/GW
mechanical systemMachine bedWelded bedWelded bedWelded bedWelded bed
Gantry structureCast Aluminum gantryCast Aluminum gantryCast Aluminum gantryCast Aluminum gantry
X-axis、Y-axis、Z-axis Servo motor and driverJapan Fuji/France SchneiderJapan Fuji/France SchneiderJapan Fuji/France SchneiderJapan Fuji/France Schneider
Linear RailsMade in Taiwan HiWinMade in Taiwan HiWinMade in Taiwan HiWinMade in Taiwan HiWin
RackMade in Taiwan YYCMade in Taiwan YYCMade in Taiwan YYCMade in Taiwan YYC
Protective Enclosure
Enhanced-partition Dust Removal
Electrical systemControl systemFSCUT2000SFSCUT2000SFSCUT2000SFSCUT2000S
8kw:FSCUT80008kw:FSCUT80008kw:FSCUT80008kw:FSCUT8000
Electrical proportional valveJapan SMC/Germany AVENTICSJapan SMC/Germany AVENTICSJapan SMC/Germany AVENTICSJapan SMC/Germany AVENTICS
O2Cutting gas control valveJapan SMCJapan SMCJapan SMCJapan SMC
N2Cutting gas control valve4KW and below:Japan SMC4KW and below:Japan SMC4KW and below:Japan SMC4KW and below:Japan SMC
6KW and above:Germany AVENTICS6KW and above:Germany AVENTICS6KW and above:Germany AVENTICS6KW and above:Germany AVENTICS
