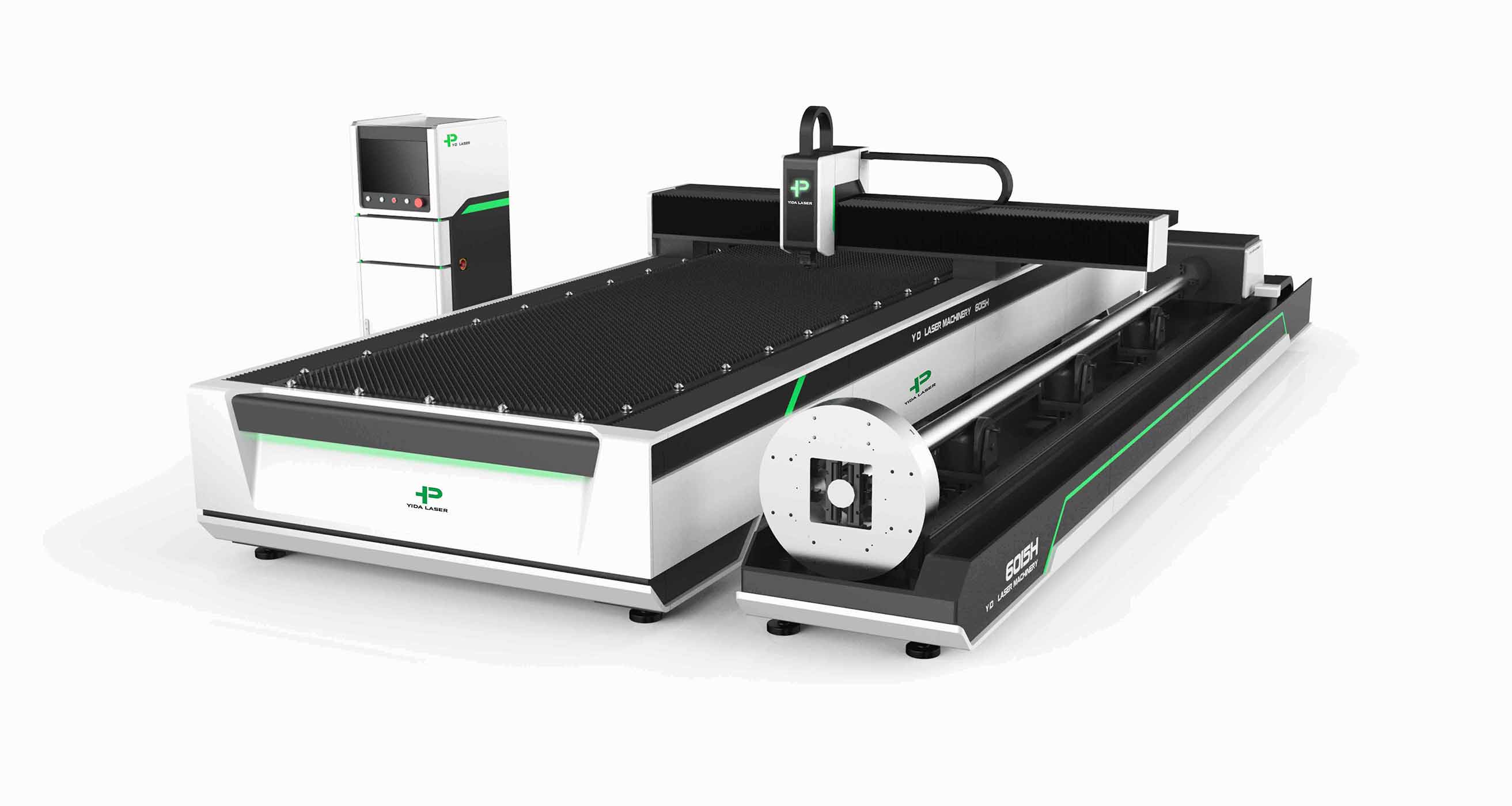

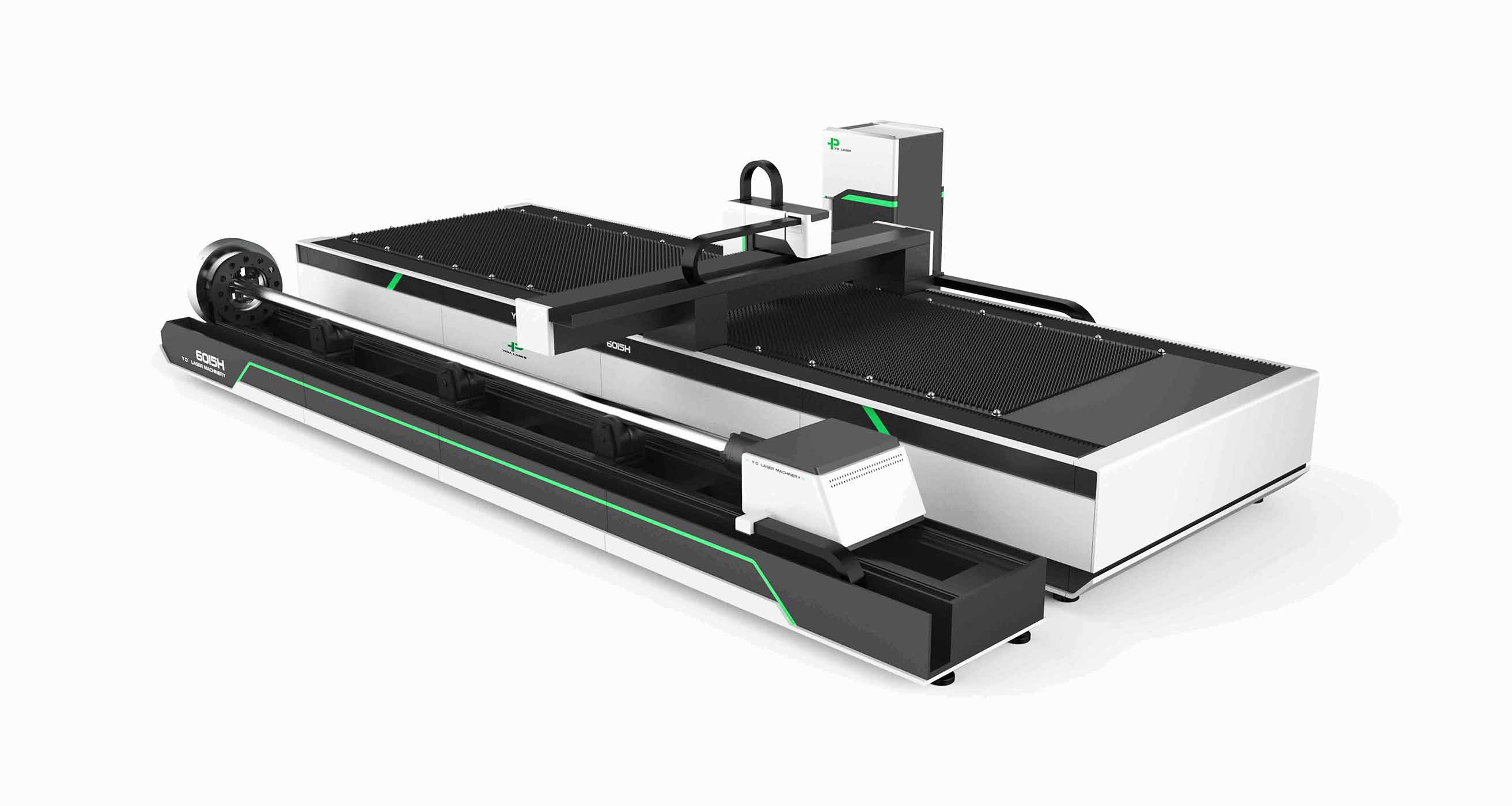

High-end Laser Cutting Machine
High-speed stability
Large surrounding design
10000 watts of nltra-high power
The main body of the equipment adopts the casting bed process, which has higher machining accuracy, better seismic resistance and higher stability.
Parallel interactive worktable, full surrounding protection, safe operation and doubled efficiency. Zone negative pressure dust removal, clean and environment-friendly.
The particular reducing manner database can perform distinct shrewd reducing for distinct materials, optimize the reducing surface, reduce a much wider variety of materials, quicker velocity, higher great and decrease cost, and may be implemented to the whole insurance of low-electricity to excessive-electricity lasers. The laser head can routinely keep away from boundaries. The laser head can perform excessive dynamic response, are expecting boundaries earlier and shield the laser head to the finest extent. Cast aluminum beam is fast. Aluminum alloy has the steel traits of mild weight and sturdy rigidity, that's conducive to excessive-velocity motion withinside the machining manner, and excessive flexibility is conducive to excessive-velocity reducing of diverse pics on the premise of excessive precision.
Since its establishment, Shandong YD Laser Technology Co., Ltd. has paid interest to the optimization and integration of technology, first-class, application, marketplace and different resources. YD laser specializes in large, medium and small layout laser slicing machines. Closely following the worldwide frontier and in near cooperation with world-well-known laser assisting providers along with Germany, america and the United Kingdom, the evolved laser gadget has excessive photoelectric conversion rate, true beam first-class and strong performance. A range of technology had been withinside the main role in China, specially the solid-nation laser slicing device in Asia in phrases of slicing thickness and slicing speed. The G collection merchandise of YD laser are geared up with expert slicing software, undertake complete surrounding double platform layout and all-spherical tracking device to make sure the secure and strong slicing operation. The excessive-power forged iron mattress has small deformation of the general mechanical structure, low vibration and excessive precision. Since the version got here out, it's been tremendously praised and identified with the aid of using clients at domestic and abroad. It is exported to Malaysia, South Korea, Russia, Europe and America and different international locations and regions.
Product Specifications:
Model | 3015G | 4020G | 6025G | 8025G | 12025G |
Work Processing Area | 3050mm*1530mm | 4000mm*2000mm | 6100mm*2500mm | 8100mm*2500mm | 12000mm*2500mm |
Laser Sources Power | 6000/12000/15000/20000/30000W | ||||
Position Accuracy | 0.03mm | ||||
Repeatability Accuracy | 0.02mm | ||||
X-Y Simultaneous Speed | 140m/min | ||||
X-Y Simultaneous Acceleration | 2G |
Packing:
Our Group:
Shandong Yida Laser Technology Co., Ltd. is a modern manufacturing enterprise specializing in the R & D and production of laser cutting machines. The company was established in 2012 and is located in Zichuan, one of the top 100 industrial areas in China.
It is the first batch of high-tech enterprises introduced from Qilu laser Industrial Park. The company has a 30000 square meter standardized plant. It has a professional technical team and operation system. The team is formed by a group of experts and professors, and at the same time, maintains a good relationship with major universities and optical research institutes in order to cooperate especially in technology exchange related to Laser cutting industry.
Since its establishment, the business enterprise has targeted at the optimization and integration of technology, fine, application, marketplace and different resources. The laser slicing gadget guided by "excessive efficiency, excessive overall performance and excessive precision" is broadly used in mechanical device, electric device, marketing and marketing signs, sheet metallic production, precision parts, virtual products, craft gifts, hardware manufacturing, digital components
automobile, steel, shipbuilding, machinery, aerospace, countrywide protection and rail transportation. Yida laser specializes in large, medium and small layout laser slicing machines. Closely following the global frontier and in near cooperation with world-well-known laser assisting providers consisting of the United States, Japan, Germany, Switzerland and United Kingdom, the evolved laser device has excessive photoelectric conversion rate, suitable beam fine and strong overall performance. In particular, the solid-kingdom laser slicing gadget occupies a main function in Asia in phrases of slicing thickness and slicing speed.
Our Factory:
Certificates:
Contact Us:
Jinan Yida Machine Tool Co., Ltd
Address: Room J1 304, high tech Wanda office building, Jinan area, Shandong pilot Free Trade Zone, China
Tel: +8653182899697
Email: yd@yd-laser.com
Function¶meter List | 8025G | 6025G | 4020G | 3015G | ||
●standard configuration, | ||||||
○optional configuration, | ||||||
×No configuration required | ||||||
Item | Subitem | |||||
Basic parameter | Working area | 8100mm*2500mm | 6100mm*2500mm | 4000mm*2000mm | 3050mm*1530mm | |
Max.linkage speed | 160m/min | 160m/min | 160m/min | 140m/min | ||
Automatic adjustment of cutting gas pressure | 6KW below:O2 | 6KW below:O2 | 6KW below:O2 | 6KW below:O2 | ||
6KW and above:O2、N2、air | 6KW and above:O2、N2、air | 6KW and above:O2、N2、air | 6KW and above:O2、N2、air | |||
Auto-focus of laser head | ● | ● | ● | ● | ||
Performance | Max.acceleration | 2G | 2G | 2G | 2G | |
Table load bearing | 6200kg(1-4kw) | 4750kg(1-4kw) | 3550kg(1-4kw) | 1800kg(1-4kw) | ||
8000kg(≥6kw) | 6300kg(≥6kw) | 4700kg(≥6kw) | 2500kg(≥6kw) | |||
Machine overall dimensions | 19700*4215*2400mm | 15300*4500*2400mm | 12000*3700*2300mm | 9950*3050*2300mm | ||
Overall weight | 22500kg | 19500kg | 11000kg | 8300kg | ||
Configuration | Optical system | laser head | 12KW and below:BLT/Ray Tools | 12KW and below:BLT/Ray Tools | 12KW and below:BLT/Ray Tools | 12KW and below:BLT/Ray Tools |
12KW and above:Germany Precitec/BLT | 12KW and above:Germany Precitec/BLT | 13KW and above:Germany Precitec/BLT | 14KW and above:Germany Precitec/BLT | |||
Laser source | MAX/IPG/Raycus/GW | MAX/IPG/Raycus/GW | MAX/IPG/Raycus/GW | MAX/IPG/Raycus/GW | ||
mechanical system | Bed | ○Cast iron bed | ○Cast iron bed | ○Cast iron bed | ○Cast iron bed | |
○welded bed | ○welded bed | ○welded bed | ○welded bed | |||
Cast aluminum cantilever | ● | ● | ● | ● | ||
X-axis、Y-axis、Z-axis Servo motor and driver | Japan Yaskawa | Japan Yaskawa | Japan Yaskawa | Japan Yaskawa | ||
Linear Rails | Made in Taiwan HiWin | Made in Taiwan HiWin | Made in Taiwan HiWin | Made in Taiwan HiWin | ||
Rack | Made in Taiwan YYC | Made in Taiwan YYC | Made in Taiwan YYC | Made in Taiwan YYC | ||
Protective Enclosure | ● | ● | ● | ● | ||
Enhanced-partition Dust Removal | ● | ● | ● | ● | ||
Electrical system | Control system | FSCUT2000S | FSCUT2000S | FSCUT2000S | FSCUT2000S | |
8kw:FSCUT8000 | 8kw:FSCUT8000 | 8kw:FSCUT8000 | 8kw:FSCUT8000 | |||
Electrical proportional valve | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | ||
O2Cutting gas control valve | Japan SMC | Japan SMC | Japan SMC | Japan SMC | ||
N2Cutting gas control valve | 4KW and below:Japan SMC | 4KW and below:Japan SMC | 4KW and below:Japan SMC | 4KW and below:Japan SMC | ||
6KW and above:Germany AVENTICS | 6KW and above:Germany AVENTICS | 6KW and above:Germany AVENTICS | 6KW and above:Germany AVENTICS |
