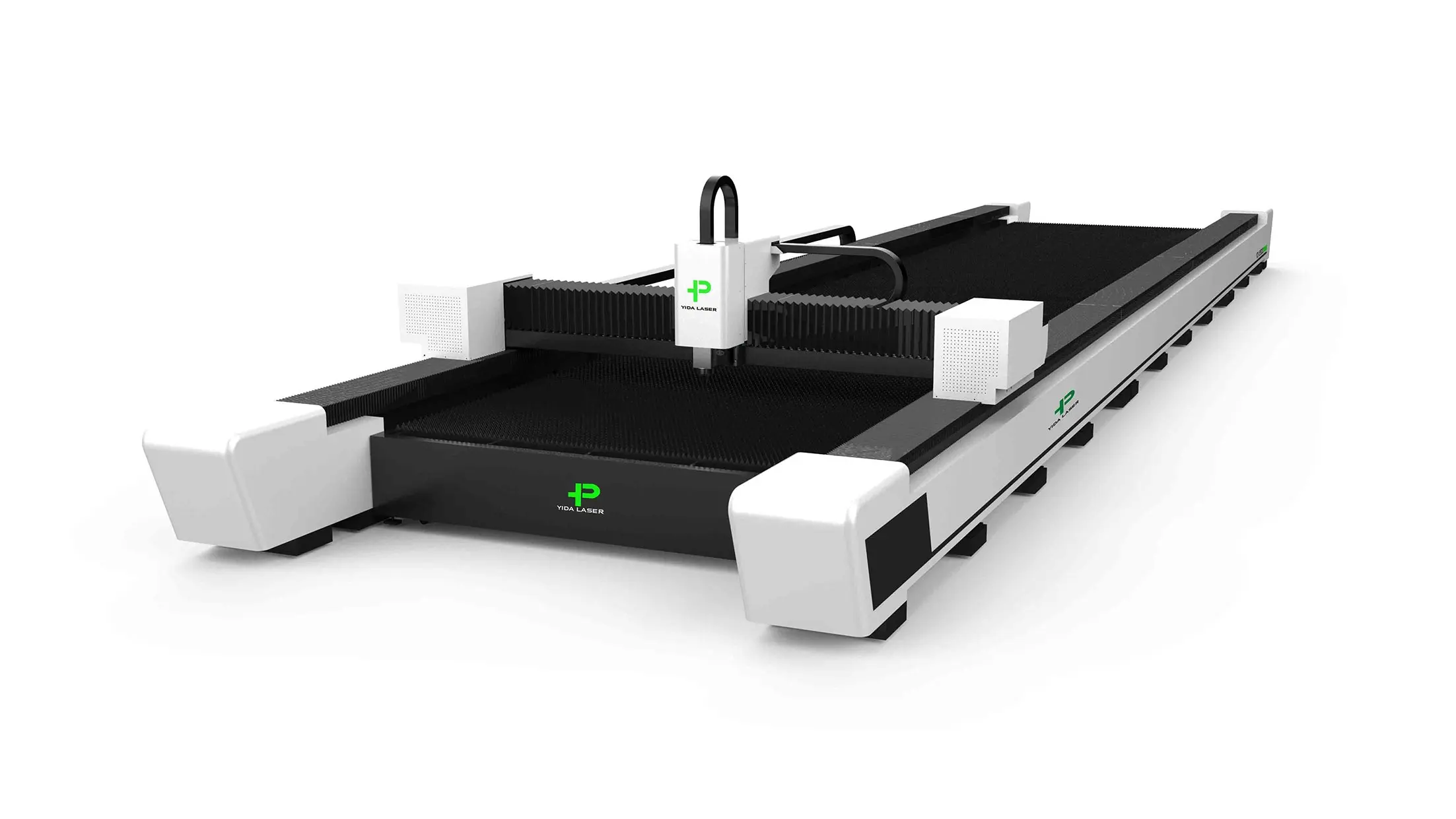

fast speed fiber laser cutter machine for steel metal cutting
YD Laser D Series Super Large Format Laser Cutting Machine
DSeriesFeatures
D It helps ultra-large width and ultra-long physique D It has wise processing, do no longer customization ,and can area a range of plates.need to exchange the plate halfway , and additionally enhance the work efficiency.
D It has metal shape crossbeam, with excessive accuracy and excellent stabil ity.
D It has the welding mattress body, with greater electricity and excessive stability.
YD fast speed fiber laser cutter machine for steel metal cutting
fast speed fiber laser cutter machine,fiber laser cutter for metal cutting,fiber laser cutting machine for steel
Model D-extra large format laser cutting machine
Product Description
The quintessential physique of the device adopts the welding mattress way, which has excessive mechanical strength, as a choice fast manufacturing cycle, on hand to set up manufacturing and minimize thermal sensitivity .
The laser adopts world most pleasant science The one-of-a-kind lowering way database can expand out exceptionally suitable sensible decreasing for extraordinarily suitable materials, optimize the reducing surface, restrict a miles wider type of materials, quicker speed, higher amazing and reduce cost, and can be carried out to the frequent insurance plan sketch of low-energy to immoderate-energy lasers.
The laser head can routinely preserve away from boundaries. The laser head can raise out excessive dynamic response, remember on boundaries in beautify and shield the laser head to the splendid extent.
Steel beam is adopted, with excessive speed. High strength, appropriate plasticity and toughness. Uniform fabric and excessive going for walks reliability.
The metal shape has the advantages of reachable manufacture, speedy manufacturing cycle and relevant assembly. Steel beam is adopted, with immoderate speed.High strength, relevant plasticity and toughness. Uniform cloth and excessive going for walks reliability.
The metal shape has the benefits of effortless manufacture, quick manufacturing cycle and appropriate assembly.
Product Specifications
Model | 12D | 16D | 20D | 25D | 30D |
Work Processing Area | 12500mm*3200mm | 16500mm*3200mm | 20500mm*3200mm | 25000mm*4500mm | 30000mm*6000mm |
Laser Sources Power | 6000/12000/15000/20000/30000/40000W | ||||
Position Accuracy | 0.1mm | ||||
Repeatability Accuracy | 0.08mm | ||||
X-Y Simultaneous Speed | 80m/min | ||||
X-Y Simultaneous Acceleration | 1G |
Packing:
Our Group:
Shandong Yida Laser Technology Co., Ltd. is a modern-day manufacturing corporation specializing in the R & D and manufacturing of laser slicing machines.
The employer was once set up in 2012 and is placed in Zichuan, one of the top a hundred industrial areas in China.
It is the first batch of high-tech firms brought from Qilu laser Industrial Park.
The organisation has a 30000 rectangular meter standardized plant. It has a expert technical group and operation system.
The crew is fashioned via a team of specialists and professors, and at the identical time, keeps a precise relationship with essential universities and optical lookup institutes in order to cooperate in particular in science trade associated to Laser slicing industry.
Our Factory:
Certificates:
Contact Us:
Jinan Yida Machine Tool Co., Ltd
Address: Room J1 304, high tech Wanda office building, Jinan area, Shandong pilot Free Trade Zone, China
Tel: +8653182899697
Email: yd@yd-laser.com
Function¶meter List | 24D | 20D | 16D | 12D | ||
●standard configuration, | ||||||
○optional configuration, | ||||||
×No configuration required | ||||||
Item | Subitem | |||||
Basic parameter | Working area | 24500mm*3200mm | 20500mm*3200mm | 16500mm*3200mm | 12500mm*3200mm | |
Max.linkage speed | 50m/min | 50m/min | 50m/min | 50m/min | ||
Automatic adjustment of cutting gas pressure | 6KW below:O2 | 6KW below:O2 | 6KW below:O2 | 6KW below:O2 | ||
6KW and above:O2、N2、air | 6KW and above:O2、N2、air | 6KW and above:O2、N2、air | 6KW and above:O2、N2、air | |||
Performance | Max.acceleration | 0.8G | 0.8G | 0.8G | 0.8G | |
Table load bearing | 34000KG | 28000KG | 23000KG | 17000KG | ||
Distance between rails | 4500mm | 4500mm | 4500mm | 4500mm | ||
Configuration | Optical system | laser head | 12KW and below:BLT/Ray Tools | 12KW and below:BLT/Ray Tools | 12KW and below:BLT/Ray Tools | 12KW and below:BLT/Ray Tools |
12KW and above:Germany Precitec/BLT | 12KW and above:Germany Precitec/BLT | 12KW and above:Germany Precitec/BLT | 12KW and above:Germany Precitec/BLT | |||
Laser source | MAX | MAX | MAX/IPG | MAX/IPG | ||
mechanical system | Gantry structure | High strength welding beam | High strength welding beam | High strength welding beam | High strength welding beam | |
X-axis、Y-axis、Z-axis Servo motor and driver | Japan Yaskawa | Japan Yaskawa | Japan Yaskawa | Japan Yaskawa | ||
Linear Rails | Made in Taiwan HiWin | Made in Taiwan HiWin | Made in Taiwan HiWin | Made in Taiwan HiWin | ||
Rack | Made in Taiwan YYC | Made in Taiwan YYC | Made in Taiwan YYC | Made in Taiwan YYC | ||
Machine bed | Segmented type rail lathe bed | Segmented type rail lathe bed | Segmented type rail lathe bed | Segmented type rail lathe bed | ||
Enhanced-partition Dust Removal | ○ | ○ | ○ | ○ | ||
Electrical system | Control system | FSCUT2000S | FSCUT2000S | FSCUT2000S | FSCUT2000S | |
8kw:FSCUT8000 | 8kw:FSCUT8000 | 8kw:FSCUT8000 | 8kw:FSCUT8000 | |||
Electrical proportional valve | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | Japan SMC/Germany AVENTICS | ||
O2 Cutting gas control valve | Japan SMC | Japan SMC | Japan SMC | Japan SMC | ||
N2Cutting gas control valve | 4KW and below:Japan SMC | 4KW and below:Japan SMC | 4KW and below:Japan SMC | 4KW and below:Japan SMC | ||
6KW and above:Germany AVENTICS | 6KW and above:Germany AVENTICS | 6KW and above:Germany AVENTICS | 6KW and above:Germany AVENTICS |
