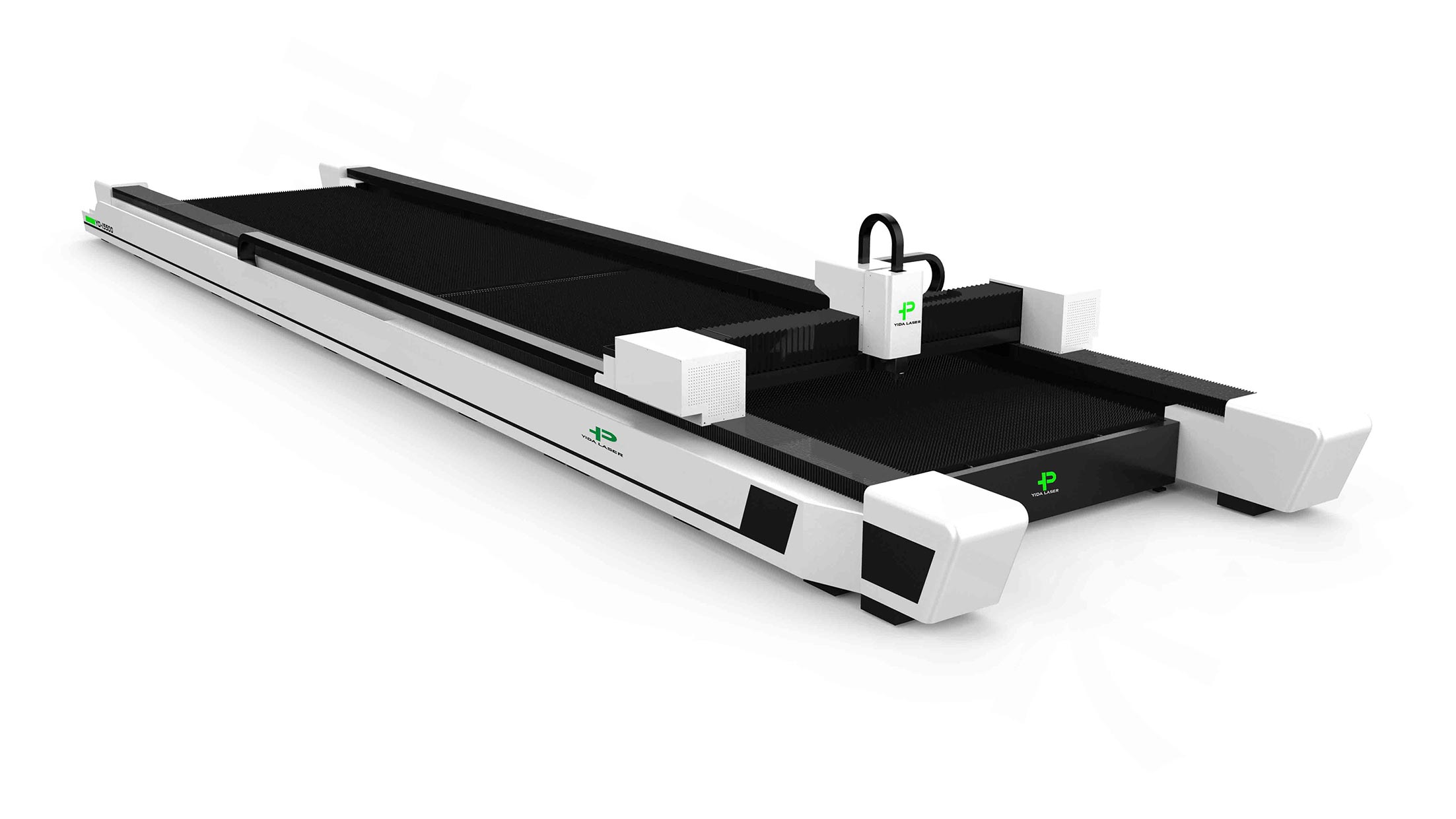

YD Laser D Series Super Large Format Laser Cutting Machine

Adopts excessive-power fiber laser, organized with precision linear guide rail, high-precision tools rack and extraordinary transmission mechanisms.
Mainly used for cutting and forming regular carbon steel plate, stainless-steel plate, aluminum and extraordinary metallic materials.
The gadget is designed with small volume, open workbench and structural stability. The precept frame of the device adopts the casting mattress technique, which has higher machining accuracy, higher seismic resistance and better balance.

Contact Now

Product Details

YD cnc laser cutter steel automation cutting equipment

cnc laser cutter steel,automated cutting,automation equipment

Model D-extra large format laser cutting machine

cnc laser cutter steel automation cutting equipment

Product Description

The laser head can routinely maintain away from boundaries. The laser head can extend out excessive dynamic response, remember on boundaries in beautify and protect the laser head to the first-rate extent.

Steel beam is adopted, with excessive speed. High strength, suitable plasticity and toughness. Uniform fabric and excessive going for walks reliability.

The metallic form has the benefits of handy manufacture, fast manufacturing cycle and applicable assembly. Steel beam is adopted, with excessive speed.High strength, applicable plasticity and toughness. Uniform material and excessive going for walks reliability.

The steel structure has the benefits of effortless manufacture, fast manufacturing cycle and ideal assembly.

Product Specifications

Model	12D	16D	20D	25D	30D
Work Processing Area	12500mm*3200mm	16500mm*3200mm	20500mm*3200mm	25000mm*4500mm	30000mm*6000mm
Laser Sources Power	6000/12000/15000/20000/30000/40000W
Position Accuracy	0.1mm
Repeatability Accuracy	0.08mm
X-Y Simultaneous Speed	80m/min
X-Y Simultaneous Acceleration	1G

Packing:

Our Group:

Shandong Yida Laser Technology Co., Ltd has been focusing on laser cutting&welding computer enterprise seeing that 2012 for slicing steel sheet carbon metal .

Our Factory:

Certificates:

cnc laser cutter steel automation cutting equipment

Contact Us:

Jinan Yida Machine Tool Co., Ltd

Address: Room J1 304, high tech Wanda office building, Jinan area, Shandong pilot Free Trade Zone, China

Tel: +8653182899697

Email: yd@yd-laser.com

Function&parameter List			24D	20D	16D	12D
●standard configuration，
○optional configuration，
×No configuration required
Item		Subitem
Basic parameter		Working area	24500mm*3200mm	20500mm*3200mm	16500mm*3200mm	12500mm*3200mm
Basic parameter		Max.linkage speed	50m/min	50m/min	50m/min	50m/min
		Automatic adjustment of cutting gas pressure	6KW below：O2	6KW below：O2	6KW below：O2	6KW below：O2
		Automatic adjustment of cutting gas pressure	6KW and above：O2、N2、air	6KW and above：O2、N2、air	6KW and above：O2、N2、air	6KW and above：O2、N2、air
Performance		Max.acceleration	0.8G	0.8G	0.8G	0.8G
		Table load bearing	34000KG	28000KG	23000KG	17000KG
		Distance between rails	4500mm	4500mm	4500mm	4500mm
Configuration	Optical system	laser head	12KW and below：BLT/Ray Tools	12KW and below：BLT/Ray Tools	12KW and below：BLT/Ray Tools	12KW and below：BLT/Ray Tools
		laser head	12KW and above：Germany Precitec/BLT	12KW and above：Germany Precitec/BLT	12KW and above：Germany Precitec/BLT	12KW and above：Germany Precitec/BLT
		Laser source	MAX	MAX	MAX/IPG	MAX/IPG
	mechanical system	Gantry structure	High strength welding beam	High strength welding beam	High strength welding beam	High strength welding beam
		X-axis、Y-axis、Z-axis Servo motor and driver	Japan Yaskawa	Japan Yaskawa	Japan Yaskawa	Japan Yaskawa
		Linear Rails	Made in Taiwan HiWin	Made in Taiwan HiWin	Made in Taiwan HiWin	Made in Taiwan HiWin
		Rack	Made in Taiwan YYC	Made in Taiwan YYC	Made in Taiwan YYC	Made in Taiwan YYC
		Machine bed	Segmented type rail lathe bed	Segmented type rail lathe bed	Segmented type rail lathe bed	Segmented type rail lathe bed
		Enhanced-partition Dust Removal	○	○	○	○
	Electrical system	Control system	FSCUT2000S	FSCUT2000S	FSCUT2000S	FSCUT2000S
		Control system	8kw：FSCUT8000	8kw：FSCUT8000	8kw：FSCUT8000	8kw：FSCUT8000
		Electrical proportional valve	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS
		O2 Cutting gas control valve	Japan SMC	Japan SMC	Japan SMC	Japan SMC
		N2Cutting gas control valve	4KW and below：Japan SMC	4KW and below：Japan SMC	4KW and below：Japan SMC	4KW and below：Japan SMC
		N2Cutting gas control valve	6KW and above：Germany AVENTICS	6KW and above：Germany AVENTICS	6KW and above：Germany AVENTICS	6KW and above：Germany AVENTICS
