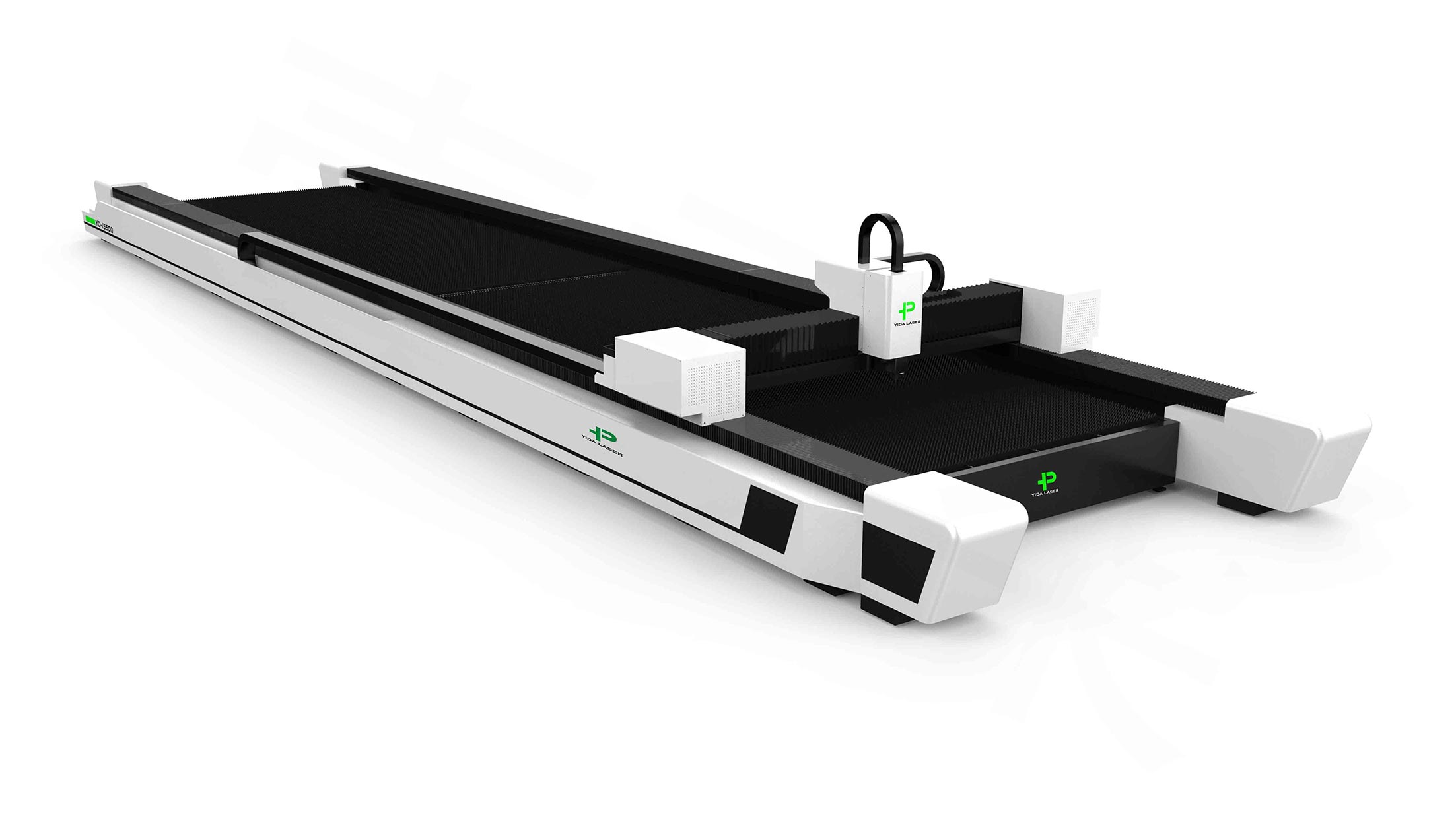

YD Laser D Series Super Large Format Laser Cutting Machine

DSeriesFeatures

D It helps ultra-large width and ultra-long physique D It has wise processing, do no longer customization ,and can area a range of plates.need to exchange the plate halfway , and additionally enhance the work efficiency.

D It has metal shape crossbeam, with excessive accuracy and excellent stabil ity.

D It has the welding mattress body, with greater electricity and excessive stability.

Contact Now

Product Details

YD Metal Laser Cutting Machines South Africa For Sale

automation laser,automated industrial machine,cnc laser cutter cost

automated industrial cnc laser cutter machine cost

Model D-extra large format laser cutting machine

Product Description

The essential physique of the gadget adopts the welding mattress way, which has immoderate mechanical strength, as a alternative speedy manufacturing cycle, accessible to set up manufacturing and reduce thermal sensitivity .

The laser adopts world most fulfilling technology The one-of-a-kind reducing way database can increase out incredibly proper clever reducing for extremely proper materials, optimize the lowering surface, limit a miles wider sort of materials, faster speed, greater excellent and decrease cost, and can be carried out to the common insurance plan of low-energy to immoderate-energy lasers.

The laser head can automatically maintain away from boundaries. The laser head can elevate out immoderate dynamic response, count on boundaries in enhance and protect the laser head to the high-quality extent.

Steel beam is adopted, with immoderate speed. High strength, proper plasticity and toughness. Uniform cloth and immoderate going for walks reliability.

The metal shape has the advantages of handy manufacture, speedy manufacturing cycle and proper assembly. Steel beam is adopted, with immoderate speed.High strength, proper plasticity and toughness. Uniform cloth and immoderate going for walks reliability.

The metal form has the benefits of clean manufacture, rapid manufacturing cycle and proper assembly.

automated industrial cnc laser cutter machine cost

Product Specifications

Model	12D	16D	20D	25D	30D
Work Processing Area	12500mm*3200mm	16500mm*3200mm	20500mm*3200mm	25000mm*4500mm	30000mm*6000mm
Laser Sources Power	6000/12000/15000/20000/30000/40000W
Position Accuracy	0.1mm
Repeatability Accuracy	0.08mm
X-Y Simultaneous Speed	80m/min
X-Y Simultaneous Acceleration	1G

Packing:

Our Group:

Shandong Yida Laser Technology Co., Ltd. is a modern manufacturing enterprise specializing in the R & D and production of laser cutting machines.

The company was established in 2012 and is located in Zichuan, one of the top 100 industrial areas in China.

It is the first batch of high-tech enterprises introduced from Qilu laser Industrial Park.

The company has a 30000 square meter standardized plant. It has a professional technical team and operation system.

The team is formed by a group of experts and professors, and at the same time, maintains a good relationship with major universities and optical research institutes in order to cooperate especially in technology exchange related to Laser cutting industry.

Our Factory:

Certificates:

automated industrial cnc laser cutter machine cost

Contact Us:

Jinan Yida Machine Tool Co., Ltd

Address: Room J1 304, high tech Wanda office building, Jinan area, Shandong pilot Free Trade Zone, China

Tel: +8653182899697

Email: yd@yd-laser.com

Function&parameter List			24D	20D	16D	12D
●standard configuration，
○optional configuration，
×No configuration required
Item		Subitem
Basic parameter		Working area	24500mm*3200mm	20500mm*3200mm	16500mm*3200mm	12500mm*3200mm
Basic parameter		Max.linkage speed	50m/min	50m/min	50m/min	50m/min
		Automatic adjustment of cutting gas pressure	6KW below：O2	6KW below：O2	6KW below：O2	6KW below：O2
		Automatic adjustment of cutting gas pressure	6KW and above：O2、N2、air	6KW and above：O2、N2、air	6KW and above：O2、N2、air	6KW and above：O2、N2、air
Performance		Max.acceleration	0.8G	0.8G	0.8G	0.8G
		Table load bearing	34000KG	28000KG	23000KG	17000KG
		Distance between rails	4500mm	4500mm	4500mm	4500mm
Configuration	Optical system	laser head	12KW and below：BLT/Ray Tools	12KW and below：BLT/Ray Tools	12KW and below：BLT/Ray Tools	12KW and below：BLT/Ray Tools
		laser head	12KW and above：Germany Precitec/BLT	12KW and above：Germany Precitec/BLT	12KW and above：Germany Precitec/BLT	12KW and above：Germany Precitec/BLT
		Laser source	MAX	MAX	MAX/IPG	MAX/IPG
	mechanical system	Gantry structure	High strength welding beam	High strength welding beam	High strength welding beam	High strength welding beam
		X-axis、Y-axis、Z-axis Servo motor and driver	Japan Yaskawa	Japan Yaskawa	Japan Yaskawa	Japan Yaskawa
		Linear Rails	Made in Taiwan HiWin	Made in Taiwan HiWin	Made in Taiwan HiWin	Made in Taiwan HiWin
		Rack	Made in Taiwan YYC	Made in Taiwan YYC	Made in Taiwan YYC	Made in Taiwan YYC
		Machine bed	Segmented type rail lathe bed	Segmented type rail lathe bed	Segmented type rail lathe bed	Segmented type rail lathe bed
		Enhanced-partition Dust Removal	○	○	○	○
	Electrical system	Control system	FSCUT2000S	FSCUT2000S	FSCUT2000S	FSCUT2000S
		Control system	8kw：FSCUT8000	8kw：FSCUT8000	8kw：FSCUT8000	8kw：FSCUT8000
		Electrical proportional valve	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS	Japan SMC/Germany AVENTICS
		O2 Cutting gas control valve	Japan SMC	Japan SMC	Japan SMC	Japan SMC
		N2Cutting gas control valve	4KW and below：Japan SMC	4KW and below：Japan SMC	4KW and below：Japan SMC	4KW and below：Japan SMC
		N2Cutting gas control valve	6KW and above：Germany AVENTICS	6KW and above：Germany AVENTICS	6KW and above：Germany AVENTICS	6KW and above：Germany AVENTICS
